Decking installation instructions, plans and designs for Aluminum Versadeck Decking for easy to install do-it-yourself projects.

Versadeck™ aluminum decking is easy to install and available in a variety of designs to better fit both residential and commercial deck applications. This customizable decking offers flexibility to design, create and build a deck that is multifunctional, efficient and cost effective specific to each application.

Versadeck™ Aluminum Decking Basic Installation Specifications

Click on a basic installation specifications drawing below to see a larger view.

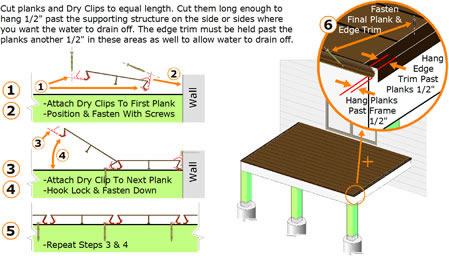

Versadry™ Waterproof Aluminum Decking System

Aluminum Waterproof Decking Installation Diagram by Versadeck Decking

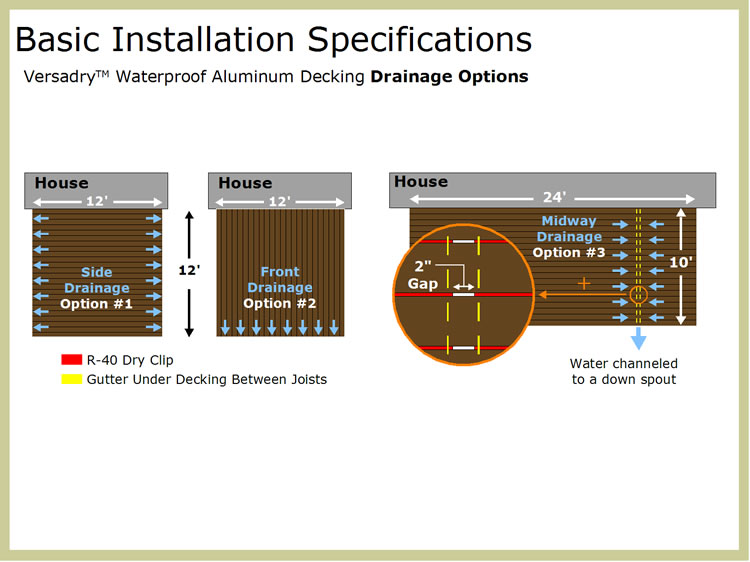

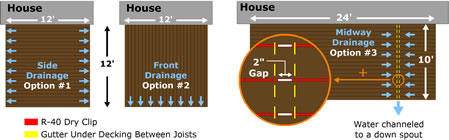

Versadry™ Waterproof Aluminum Decking Drainage Options

Aluminum Waterproof Decking Drainage Diagram by Versadeck Decking

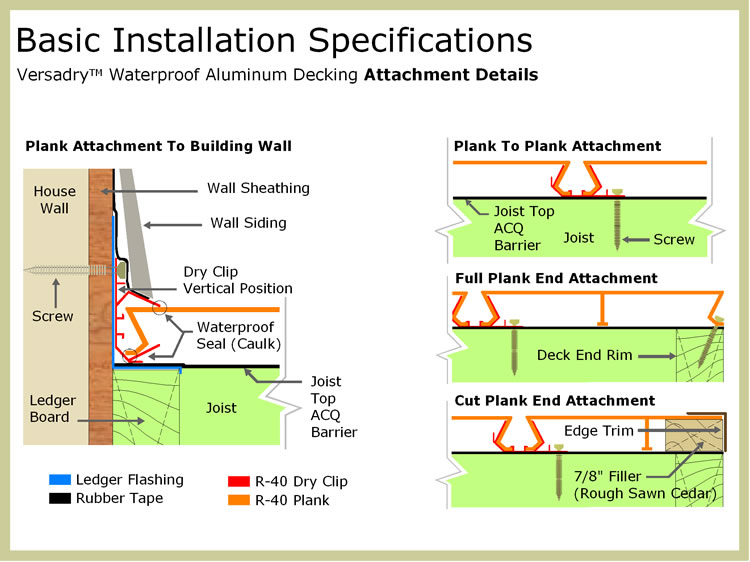

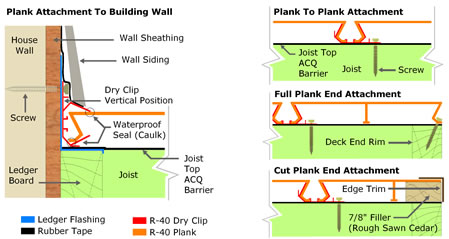

Versadry™ Waterproof Aluminum Decking Attachment Details

Aluminum Plank Decking Installation Diagram by Versadeck Decking

Detailed Installation Instructions

To view detailed Versadeck™ aluminum decking installation instructions, product specifications, care & cleaning and warranty information, select from the following products listed below to download the information as a PDF file.

Waterproof Aluminum Decking - Versadry R-40 Installation, Care & Warranty.pdf
   • 230.50 KB

Plank Aluminum Decking - Versaplank R-40 Installation, Care & Warranty.pdf
   • 163.64 KB

Modular Aluminum Decking - Versamods R-40 Installation, Care & Warranty.pdf
   • 167.26 KB

Modular Aluminum Decking - Versamods C-60 Installation, Care & Warranty.pdf
   • 166.26 KB

Plank Aluminum Decking - Versaplank C-60 Installation, Care & Warranty.pdf
   • 193.68 KB

Waterproof Aluminum Decking - Versadry C-60 Installation, Care & Warranty.pdf
   • 272.55 KB

If you would like assistance in the creation of a Versadeck™ aluminum deck design and to generate a parts list, please submit the following information. A Versadeck™ aluminum decking design specialist will then contact you to discuss and recommend a design service package that best fits your needs. We may also refer you to a dealer in your area to better assist you.

Versamods™ Decking

Aluminum Modular Decking Installation Diagram by Versadeck Decking

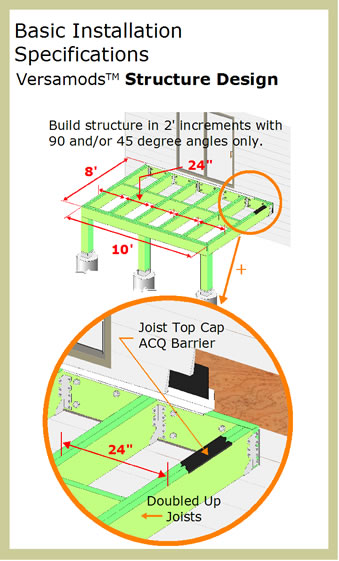

Versamods™ Structure

Aluminum Modular Decking Substructure Installation Diagram by Versadeck Decking

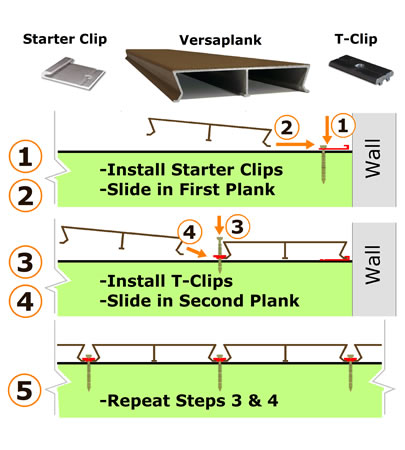

Versaplank™ Decking

Aluminum Plank Decking Easy Installation Diagram by Versadeck Decking

Deck Plans & Design Your Dream Deck

Company Name:
First Name:
Last Name:
Street:
City:
State:
Zip Code:
Day Phone:
Evening Phone:
Email:
Fax:
Comments:

Deck Design Services

Take Advantage of Versadeck's
Custom Design Services.

Concept Drawings: $150
Construction Plans: $250
